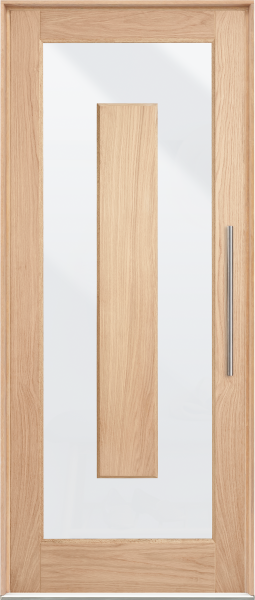

Lumina White Oak Collection specifications

• Door construction Collapse Door construction accordion Expand Door construction accordion

  Stile and Rail Joinery door.

  View all door construction details.

• White Oak veneer Collapse White Oak veneer accordion Expand White Oak veneer accordion

  White Oak veneer is a natural product, as such the colour, grain and texture can vary. Whilst every attempt is made
  to ensure veneers match, any variation in colour, grain and texture will not be considered a defect.

• Trimming Collapse Trimming accordion Expand Trimming accordion

  Doors – 5mm from top, bottom and each stile.

• Glazing Collapse Glazing accordion Expand Glazing accordion

  Complies with AS1288:2021 for the selection and installation of glass in buildings. Glass pattern direction is
  oriented to the longest length of glass opening or design direction.

• Hinges Collapse Hinges accordion Expand Hinges accordion

  Doors measuring up to 2040 x 820 require a minimum of 3 hinges. Doors over and above this size require 4 hinges. Speak to your local Corinthian Doors team on 1300 899 153 about framing requirements and available options for doors 1020 or wider.

• Pre-finishing & installation Collapse Pre-finishing & installation accordion Expand Pre-finishing & installation accordion

  Light reflective colours should be used on all doors exposed to direct sunlight. Entrance doors must be installed in weather protected openings to reduce the effects of weather exposure. Refer to – Door Care and Maintenance recommendations. Failure to adhere to these recommendations will void warranty.

• BAL rating Collapse BAL rating accordion Expand BAL rating accordion

  BAL 12.5 – Must be specified at time of order.

• Approx. weight Collapse Approx. weight accordion Expand Approx. weight accordion

  50-55kg (Based on 2040 x 820 door).

  50–60kg (Based on 2040 x 1200 door).

• Warranty Collapse Warranty accordion Expand Warranty accordion

  5 years – Terms and conditions apply – refer to Warranty and Terms and Conditions of Sale.

• Special sizes Collapse Special sizes accordion Expand Special sizes accordion

  Special sizes up to 2700 x 1200 x 40.
  Prices and lead-times upon application. Special sizes will be Made to Order.
  Special size doors measuring 1020mm wide and above will be manufactured as a wide style door.

• Please note Collapse Please note accordion Expand Please note accordion

  All sizes are nominal and in millimetres. Door furniture pictured on the doors is sold
  separately. All doors depicted are professionally finished. Doors are supplied raw.
