Cavity units

Sometimes, styling a space also means making the most of that space—it’s a common challenge for ensuites, walk-in wardrobes, bathrooms, and laundries.

In these cases, sliding cavity door systems are the perfect blend of style and efficiency. They can complement a wide range of aesthetics before sliding conveniently and discreetly into the unit housed within the wall, saving on the room that would otherwise be taken up by a hinged door.

When selecting your Cavity Unit, it is important to select the right Cavity Unit for the size and weight of your doors: whether it is for a single door or double door slider, and whether you would like a soft closer mechanism.

We offer both steel cavity units (called the Platinum range) and timber (Slimline), which are compatible with our extensive range of interior door designs. Platinum cavity units provide added strength. They’re ideal for heavy floor-to-ceiling doors, tiled walls, and wet areas where moisture can damage timber units.

Platinum 4000 Steel Cavity Units

Corinthian Doors Platinum 4000 Cavity Units can carry wider and heavier doors. They are suitable for homes and commercial applications and are available with an optional Soft Closer to prevent slamming.

Features of the Platinum 4000 range include:

Steel construction can carry heavier and wider doors – up to 65kg single door and 45kg per door for double sliding door applications.
Steel construction is resistant to warping, bowing, and moisture damage.
A jump proof twin roller track with dual axle ball bearing for smooth running.
Suitable for tiled wall applications.
Press-release option for easy door retrieval from the cavity pocket in flush jamb configuration.

The Platinum 4000 Cavity Unit range can also come with an optional Soft Closer Kit. When selecting your Soft Closer Kit please order based on the weight of your door.

Soft Closer Kit – for doors weighing 10kg to 19kg
Soft Closer Kit – for doors weighing 20kg to 39kg
Soft Closer Kit – for doors weighing 40kg to 65kg

Ask your builder or hardware retailer to include a Soft Closer Kit when ordering a Platinum 4000 Cavity Unit.

Platinum 4000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	436	845
2040 x 720	436	845
2040 x 770	436	845
2040 x 820	436	845
2040 x 870	462	895
2040 x 920	462	895
2040 x 1020	530	-
2340 x 620	487	940
2340 x 720	487	940
2340 x 770	487	940
2340 x 820	487	940
2340 x 870	530	1020
2340 x 920	530	1020

SOFT CLOSE KIT - ADD TO CAVITY PRICE	Single	Double
	$	$
Soft Close Kit - To Suit 16kg to 19kg Door	+ 95	+ 190
Soft Close Kit - To Suit 20kg to 39kg Door	+ 95	+ 190
Soft Close Kit - To Suit 40kg to 65kg Door	+ 95	+ 190

Platinum 4000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	498	980
2040 x 720	498	980
2040 x 770	498	980
2040 x 820	498	980
2040 x 870	530	1210
2040 x 920	530	1210
2340 x 620	555	1130
2340 x 720	555	1130
2340 x 770	555	1130
2340 x 820	555	1130
2340 x 870	665	1330
2340 x 920	665	1330
Cavity to suit 13mm plaster	$	$
	+ 73	+ 145

Platinum 4000 - Additional fittings	Single	Double
90MM Stud Thickness	$	$
up to 870	+ 11	+ 22
up to 1200	+ 11	+ 22

SOFT CLOSE KIT - ADD TO CAVITY PRICE	Single	Double
	$	$
Soft Close Kit - To Suit 16kg to 19kg Door	+ 95	+ 190
Soft Close Kit - To Suit 20kg to 39kg Door	+ 95	+ 190
Soft Close Kit - To Suit 40kg to 65kg Door	+ 95	+ 190

Platinum 4000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	410	810
2040 x 720	410	810
2040 x 770	410	810
2040 x 820	410	810
2040 x 870	510	1000
2040 x 920	510	1000
2040 x 1020	565	-
2340 x 620	498	970
2340 x 720	498	970
2340 x 770	498	970
2340 x 820	498	970
2340 x 870	575	1140
2340 x 920	575	1140
2340 x 1020	625	-
Cavity to suit 13mm plaster	$	$
	+ 88	+ 173

ADDITIONAL FITTING SETS	$
Fitting/roller sets	63
Guide Glide Kit	13
Jexis Press-Release Unit	81

SOFT CLOSE KIT - ADD TO CAVITY PRICE	Single	Double
	$	$
Soft Close Kit - To Suit 16kg to 19kg Door	+ 95	+ 190
Soft Close Kit - To Suit 20kg to 39kg Door	+ 95	+ 190
Soft Close Kit - To Suit 40kg to 65kg Door	+ 95	+ 190

Platinum 4000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	446	970
2040 x 720	446	970
2040 x 770	446	970
2040 x 820	446	970
2040 x 870	482	875
2040 x 920	482	875
2340 x 620	510	990
2340 x 720	510	990
2340 x 770	510	990
2340 x 820	510	990
2340 x 870	520	1010
2340 x 920	520	1010
Cavity to suit 13mm plaster	$	$
	+ 120	+ 237

SOFT CLOSE KIT - ADD TO CAVITY PRICE	Single	Double
	$	$
Soft Close Kit - To Suit 16kg to 19kg Door	+ 95	+ 190
Soft Close Kit - To Suit 20kg to 39kg Door	+ 95	+ 190
Soft Close Kit - To Suit 40kg to 65kg Door	+ 95	+ 190

Platinum 4000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	498	1000
2040 x 720	498	1000
2040 x 770	498	1000
2040 x 820	498	1000
2040 x 870	675	1360
2040 x 920	675	1360
2040 x 1020	755	-
2340 x 620	745	1415
2340 x 720	745	1415
2340 x 770	745	1415
2340 x 820	745	1415
2340 x 870	930	1635
2340 x 920	930	1635
2340 x 1020	930	-

SOFT CLOSE KIT - ADD TO CAVITY PRICE	Single	Double
	$	$
Soft Close Kit - To Suit 16kg to 19kg Door	+ 95	+ 190
Soft Close Kit - To Suit 20kg to 39kg Door	+ 95	+ 190
Soft Close Kit - To Suit 40kg to 65kg Door	+ 95	+ 190

Platinum 6000 Steel Cavity Units

Corinthian Doors Platinum 6000 Cavity Units can carry single doors up to 125kg and double sliding door applications up to 85kg per door.

Features of the Platinum 6000 range include:

Steel construction is resistant to warping, bowing, and moisture damage.
A jump proof twin roller track with dual axle ball bearing for smooth running.
Suitable for tiled wall applications.

Press-release option for easy door retrieval from the cavity pocket in flush jamb configuration.

Platinum 6000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	645	1270
2040 x 720	645	1270
2040 x 770	645	1270
2040 x 820	645	1270
2040 x 870	705	1405
2040 x 920	705	1405
2040 x 970	960	1100
2040 x 1020	845	1660
2040 x 1070	960	1100
2040 x 1120	960	1100
2040 x 1200	845	1660
2340 x 620	780	1555
2340 x 720	780	1555
2340 x 770	780	1555
2340 x 820	780	1555
2340 x 870	855	1695
2340 x 920	855	1695
2340 x 970	1100	2190
2340 x 1020	980	1935
2340 x 1070	1100	2190
2340 x 1120	1100	2190
2340 x 1200	980	1935

Platinum 6000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	735	1460
2040 x 720	735	1460
2040 x 770	735	1460
2040 x 820	735	1460
2040 x 870	780	1585
2040 x 920	780	1585
2040 x 1020	960	1905
2040 x 1200	960	1905
2340 x 620	865	1735
2340 x 720	865	1735
2340 x 770	865	1735
2340 x 820	865	1735
2340 x 870	930	1895
2340 x 920	930	1895
2340 x 1020	1080	2160
2340 x 1200	1080	2160
Cavity to suit 13mm plaster	$	$
	+ 73	+ 145

Platinum 6000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	675	1310
2040 x 720	675	1310
2040 x 770	675	1310
2040 x 820	675	1310
2040 x 870	745	1450
2040 x 920	745	1450
2040 x 1020	875	1705
2040 x 1200	875	1705
2340 x 620	810	1575
2340 x 720	810	1575
2340 x 770	810	1575
2340 x 820	810	1575
2340 x 870	885	1715
2340 x 920	885	1715
2340 x 1020	1010	1965
2340 x 1200	1010	1965
Cavity to suit 13mm plaster	$	$
	+ 88	+ 173

ADDITIONAL FITTING SETS	$
Fitting/roller sets	219
Guide Glide Kit	13
Jexis Press-Release Unit	81

Platinum 6000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	575	1200
2040 x 720	575	1200
2040 x 770	575	1200
2040 x 820	575	1200
2040 x 870	605	1225
2040 x 920	605	1225
2040 x 1020	845	1625
2040 x 1200	845	1625
2340 x 620	695	1395
2340 x 720	695	1395
2340 x 770	695	1395
2340 x 820	695	1395
2340 x 870	770	1545
2340 x 920	770	1545
2340 x 1020	1200	2250
2340 x 1200	1200	2250
Cavity to suit 13mm plaster	$	$
	+ 120	+ 237

Platinum 6000	Single	Double
90MM Stud Thickness	$	$
2040 x 620	885	1905
2040 x 720	885	1905
2040 x 770	885	1905
2040 x 820	885	1905
2040 x 870	990	1965
2040 x 920	990	1965
2040 x 1020	1260	2625
2040 x 1200	1260	2625
2340 x 620	1110	2190
2340 x 720	1110	2190
2340 x 770	1110	2190
2340 x 820	1110	2190
2340 x 870	1170	2330
2340 x 920	1170	2330
2340 x 1020	1270	2775
2340 x 1200	1270	2775

Platinum 9000 Steel Cavity Units

Corinthian Doors Platinum 9000 Cavity Units are suitable for sliding doors required for floor to ceiling applications and can carry single doors up to 125kg and double sliding door applications up to 85kg per door.

Features of the Platinum 9000 range include:

Suitable for floor to ceiling door installation.
Steel construction is resistant to warping, bowing, and moisture damage.
A jump proof twin roller track with dual axle ball bearing for smooth running.
Suitable for tiled wall applications.

Press-release option for easy door retrieval from the cavity pocket in flush jamb configuration.

Platinum 9000 - Made To Suit Specific Ceiling Heights	Single
90MM Stud Thickness	$
2400 x 1200	1615
2700 x 1200	1685
3000 x 1200	1745
3000 x 1600	P.O.A

Platinum 9000 - Additional fittings	Single	Double
90MM Stud Thickness	$	$
Up to 870	+ 11	+ 22
Up to 1200	+ 11	+ 22

Platinum 9000 - Made To Suit Specific Ceiling Heights	Single	Double
90MM Stud Thickness	$	$
2400 x 1200	2085	4155
2700 x 1200	2240	4460
3000 x 1200	2400	4790

Platinum 9000 - Made To Suit Specific Ceiling Heights	Single
90MM Stud Thickness	$
Up to 2400 x 1200	1685
Up to 2700 x 1200	1980
Up to 3000 x 1200	2265

ADDITIONAL FITTING SETS	$
Guide Glide Kit	13
Jexis Press-Release Unit	81

Platinum 9000	Single	Double
90MM Stud Thickness	$	$
2400 x 1200	1615	3200
2700 x 1200	1650	3295
3000 x 1200	1685	3360

Platinum 9000 - Made To Suit Specific Ceiling Heights	Single	Double
90MM Stud Thickness	$	$
2400 x 1200	1735	3450
2700 x 1200	1925	3825
3000 x 1200	2030	4045

ADDITIONAL FITTING SETS	$
Fitting/roller sets Platinum 4000	+ 58
Fitting/roller sets Platinum 6000	+ 287
Fitting/roller sets Platinum 9000	+ 287
Centre Stop	+ 10
Guide Glide Kit	+ 13
Jexis Press Release Unit	+ 81
Platinum 4000 Soft Close Kit - To Suit 16kg to 19kg Door	+ 95
Platinum 4000 Soft Close Kit - To Suit 20kg to 39kg Door	+ 95
Platinum 4000 Soft Close Kit - To Suit 40kg to 65kg Door	+ 95
Reinforcement for Grab Rail - 1 Side - Platinum 4000/6000	+ 267
Reinforcement for Grab Rail - 2 Side - Platinum 4000/6000	+ 375
Cavity Switch Unit	P.O.A*

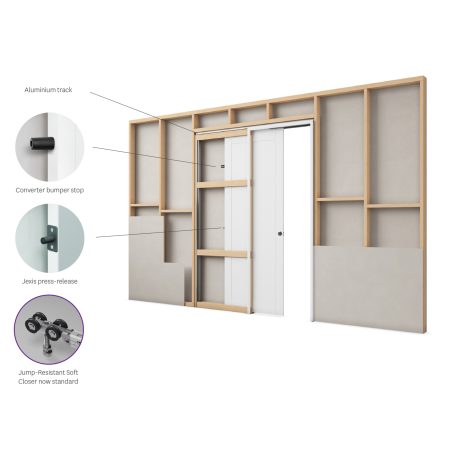

Slimline 3000 Cavity Unit

Corinthian Doors Slimline 3000 Cavity Units are timber and can accommodate a standard range of sliding doors for your home.

Features of the Slimline 3000 range include:

Suitable for door heights of 2040mm and 2340mm and up to 65kg door weight for single door applications and 45kg per door for double sliding applications.
Suitable for stud wall thickness of 70mm, 75mm, 90mm and 100mm.
A jump proof twin roller track and eight precision roller bearings for smooth running.

Please note:

South Australia: Slimline 3000 Cavity Units are not available in South Australia
Queensland and Western Australia: the range is only available to suit 2040mm high doors and 90mm stud wall thickness in Queensland and Western Australia

Slimline 3000 - Flush Pull	Single	Double
90MM Stud Thickness	$	$
2040 x 520	359	770
2040 x 620	359	770
2040 x 720	359	770
2040 x 770	359	770
2040 x 820	359	770
2040 x 870	395	1020
2040 x 920	395	1020
2340 x 620	510	1035
2340 x 720	510	1035
2340 x 770	510	1035
2340 x 820	510	1035
2340 x 870	530	1170
2340 x 920	530	1170
100MM Stud Thickness	$	$
2040 x 520	-	-
2040 x 620	385	820
2040 x 720	385	820
2040 x 770	385	820
2040 x 820	385	820
2040 x 870	416	1020
2040 x 920	416	1020
2340 x 620	545	1035
2340 x 720	545	1035
2340 x 770	545	1035
2340 x 820	545	1035
2340 x 870	565	1225
2340 x 920	565	1225

ADDITIONAL FITTING SETS	$
Fitting/roller sets	+ 60
Centre Stop	-
Guide Glide Kit	+ 11
Jexis Press-Release Unit	+ 81
Cavity Switch Unit	P.O.A*

Slimline 3000 - Flush Jamb	Single	Double
90MM Stud Thickness	$	$
2040 x 620	339	675
2040 x 720	339	675
2040 x 770	339	675
2040 x 820	339	675
2040 x 870	385	780
2040 x 920	385	780
2340 x 620	482	970
2340 x 720	482	970
2340 x 770	482	970
2340 x 820	482	970
2340 x 870	492	1000
2340 x 920	492	1000
100MM Stud Thickness	$	$
2040 x 620	339	675
2040 x 720	339	675
2040 x 770	339	675
2040 x 820	339	675
2040 x 870	385	780
2040 x 920	385	780
2340 x 620	482	970
2340 x 720	482	970
2340 x 770	482	970
2340 x 820	482	970
2340 x 870	492	1000
2340 x 920	492	1000
Cavity to suit 13mm plaster	$	$
	+ 73	+ 145

ADDITIONAL FITTING SETS	$
Fitting/roller sets	+ 39
Centre Stop	-
Guide Glide Kit	+ 11
Jexis Press-Release Unit	+ 81
Cavity Switch Unit	P.O.A*

Slimline 3000 - Flush Jamb	Single
90MM Stud Thickness	$
2040 x 620	359
2040 x 720	359
2040 x 770	359
2040 x 820	359
2040 x 870	436
2040 x 920	436

ADDITIONAL FITTING SETS	$
Fitting/roller sets	54
Centre Stop	-
Guide Glide Kit	13
Jexis Press-Release Unit	81
Cavity Switch Unit	P.O.A*

Slimline 3000 - Flush Pull	Single	Double
90MM Stud Thickness	$	$
2040 x 620	395	800
2040 x 720	395	800
2040 x 770	395	800
2040 x 820	395	800

Slimline 3000 - Flush Jamb	Single	Double
90MM Stud Thickness	$	$
2040 x 620	395	800
2040 x 720	395	800
2040 x 770	395	800
2040 x 820	395	800

ADDITIONAL FITTING SETS	$
Fitting/roller sets	+ 58
Centre Stop	+ 10
Guide Glide Kit	+ 13
Jexis Press-Release Unit	+ 81
Cavity Switch Unit	P.O.A*

Cavity systems & accessories

Get a more detailed look at our cavity units

Platinum steel cavity unit
Platinum steel cavity unit
Slimline cavity unit
Slimline cavity unit
Slimline cavity unit
Slimline cavity unit
